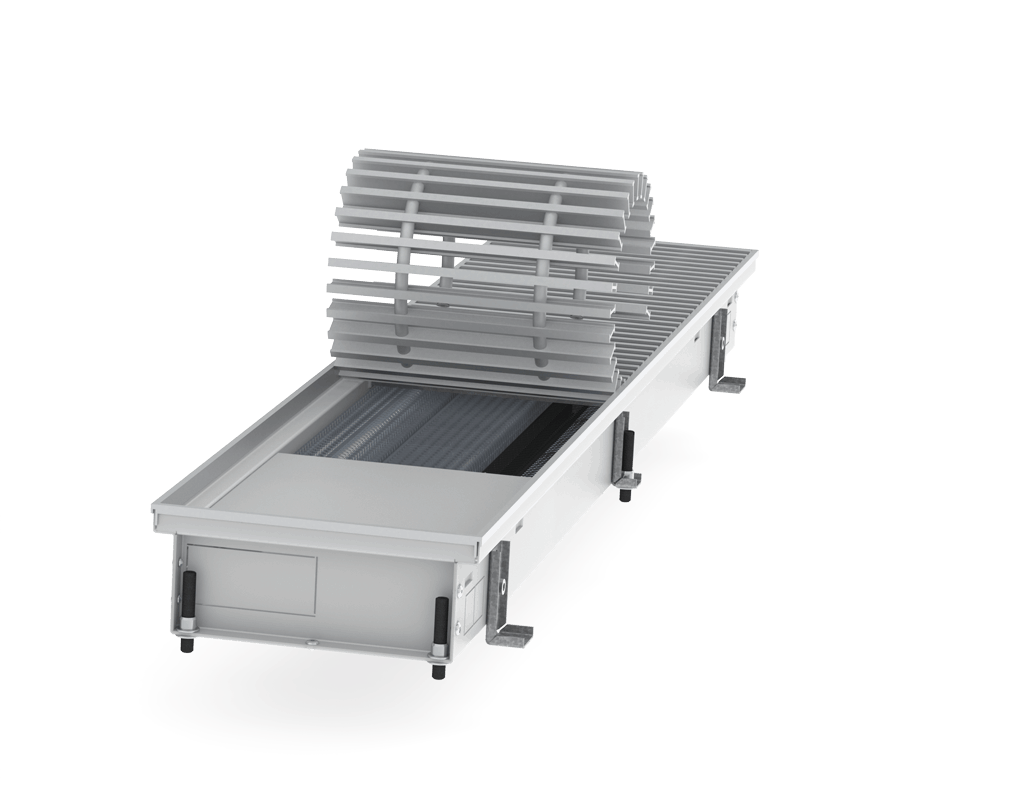

Hitte Heating and Cooling Trench

Hitte Heating and Cooling Trench is ideal for both an impressive yet inaudible heating and cooling system. Essential for annual use in the hottest of summers or coldest of winters. With the addition of a low voltage axial fan this systems boasts tremendous outputs on both heating and cooling loops. Our capabilities give the customer diversity with the option of both 2 pipe and 4 pipe configurations. Where two pipe gives less of a control as it essentially means the entire system is either on heating or cooling where as four pipe allows for partial cooling/heating.

View full product description

Enquire about wholesale orders for Hitte Heating and Cooling Trench

Send enquiry or call on 01450 372103

Product Description

Trench Heating is now universally found throughout buildings of all type including homes, offices, restaurants, shopping malls, galleries and museums providing discreet heating within entrance halls, reception areas, corridors, living and office spaces and conservatories. It is set into the floor, within a trench, and the heat rises through an attractive aluminium grille that sits flush with the floor surface.

Subtle, it perfectly complements the modern minimalist interior design style and is ideal where space is at a premium. It is often the architect’s heating system of choice when seeking to utilise natural light in the most effective way and incorporating large areas of glazing in new developments, building extensions or refurbishments.

With a Heating & Cooling Trench Heating system, higher heating outputs and enhanced air flow can be achieved from a Low and safe 24V cross-flow fans force the air over the finned heat exchanger elements accelerating the air flow. This makes a Heating & Cooling Trench Heating system an ideal, powerful yet discreet primary heating system or a fast acting secondary heating system perfect for counteracting downdraught or condensation in highly glazed areas. With option to purchase a condensate pump to suit the unit to help remove unwanted liquid from the trench.

*Contact us for info on the full Hitte range with a vast range of dimensional configurations, types & grilles*

Technical Specifications

Popular Models (other models available)

Fan Assisted LPHW
Trench Heater
Product Codes
(Stock Models)
Height/Depth
(mm)
Width
(mm)
Length
(mm)
Heat Output
at mean water
temp 70C
(W)
Fan
Electrical
Supply
Max
Noise Level
(dB)
HitteFXX0801752000XNXX
801752000132324V DC26
HitteFXX0803051000XNXX
803051000100724V DC24
HitteFXX0803052000XNXX
803052000247824V DC26
HitteFXX1251751000XNXX
125175100073224V DC28
HitteFXX1251752000XNXX
1251752000180124V DC44
HitteFXX1253051000XNXX
1253051000158924V DC28
HitteFXX1253052000XNXX
1253052000391024V DC44
The table above relates to our 7 stock models. The heat outputs indicated are based on a typical boiler system with mean water temperature of 70C, an ambient room temp of 20C and the fan speed is set at 70%.

~To see full product range download the Fan-Assisted Trench Brochure above~

Heat Output Table (models above)

Height(mm)Width(mm)Temp. Of waterSpeed of fan1000mm long2000mm long
8017595/85/2020%185W455W
70%779W1916W
100%925W2274W
75/65/2020%128W314W
70%538W1323W
100%638W1570W
50/40/2020%60W146W
70%251W617W
100%298W732W
Fan input W2.9W4.8W
8030595/85/2020%354W872W
70%1493W3674W
100%1772W4360W
75/65/2020%239W588W
70%1007W2478W
100%1195W2940W
50/40/2020%106W261W
70%447W1100W
100%531W1306W
Fan input W2.9W4.8W
12517595/85/2020%266W654W
70%1067W2625W
100%1330W3271W
75/65/2020%182W449W
70%732W1801W
100%912W2244W
50/40/2020%84W207W
70%337W829W
100%420W1033W
Fan input W2.9W4.8W
12530595/85/2020%542W1334W
70%2207W5430W
100%2711W6669W
75/65/2020%390W960W
70%1589W3910W
100%1952W4802W
50/40/2020%199W488W
70%808W1988W
100%993W2442W
Fan input W22W48W

Configure your system using our Product Specification & Costing Tool

Contact us for design assistance

Contacts us to request e-catalogue

Design & Installation

Our Trench Heaters should be installed by suitably qualified builders, plumbers and electricians. The unit should be securely fixed and electrical connections made by a suitably qualified person in accordance with the latest edition of the IEE Requirements for Electrical Installation (BS7671).

Alternatively, contact us to obtain a quote from our own installation team.
