Prevent Costly Failures with Safer, Stronger Tube Bundle

Home » Tube Bundle

Tube Bundle Capabilities

We offer a complete solution covering:

Design: Custom-designed tube bundles optimised for performance and longevity.
Manufacture: Precision fabrication using advanced equipment and rigorous quality control.
Replacement: Efficient replacement and retrofit of existing tube bundles, minimising downtime.
Lead Time: Approximately 3-5 weeks, depending on material availability.

Sizes: Diameters from 2" to 48", with larger sizes available depending on weight and application requirements.
Materials:
- Stainless Steel
- Carbon Steel
- Copper / Brass
- Other specialty alloys available upon request.
Bundle Types:
- Straight Tube Bundles
- Floating Tube Sheet Bundles
Design Features:
- Double Tube Sheet design available to enhance safety and prevent cross-contamination.
Design Codes: Compliance with major international standards including PD5500, BS EN13445, and ASME VIII Div.1.

Enhanced thermal performance

Custom fit ensures correct operation

Stress-tested across engineering platforms

Minimise unplanned outages

Compliant with major international standards

Short lead times (3–5 weeks)

Peace of mind through guaranteed performance

Support from experienced engineers

Safer working environment

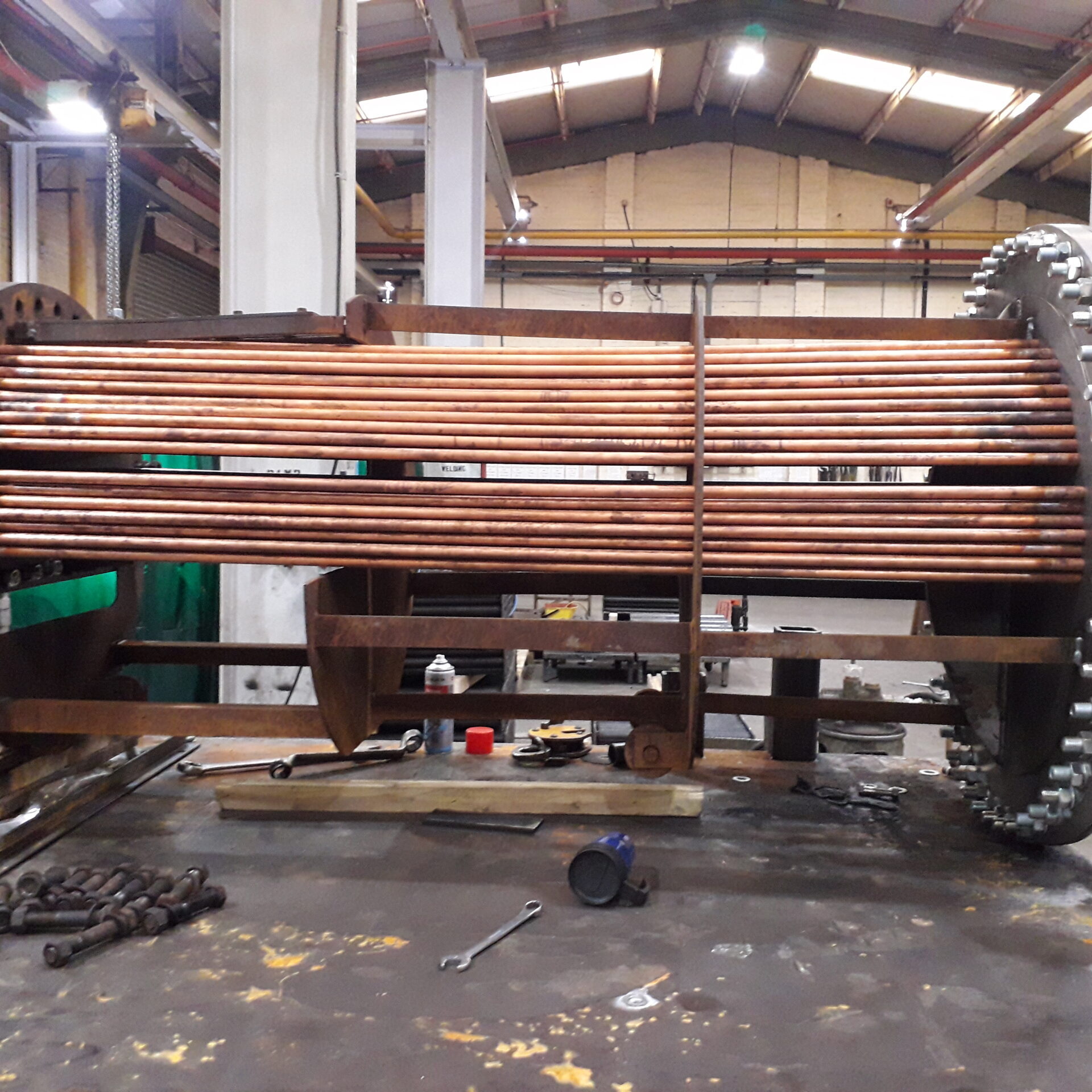

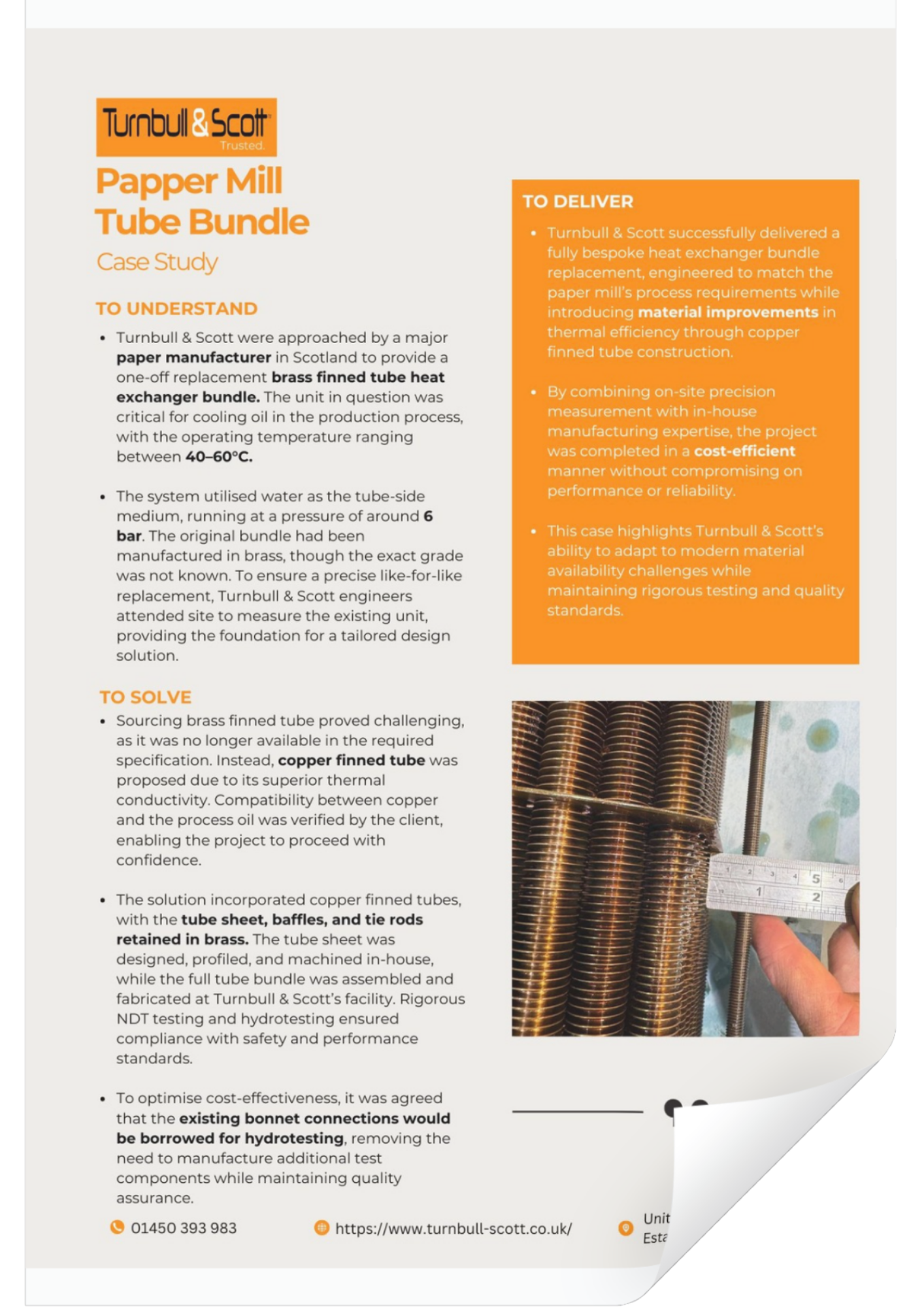

One-off bespoke replacement of a brass finned tube heat exchanger bundle for a leading paper manufacturer in Scotland.
On-site measurement survey ensured precise like-for-like design and seamless integration.
Material upgrade: copper finned tube selected for improved thermal conductivity and approved compatibility with process oil.
In-house expertise: tube sheet machined, bundle assembled, and NDT/hydrotested at Turnbull & Scott’s facility.
Cost-effective solution achieved by reusing existing bonnet connections for hydrotesting.

Embark on your next project with Turnbull & Scott.
