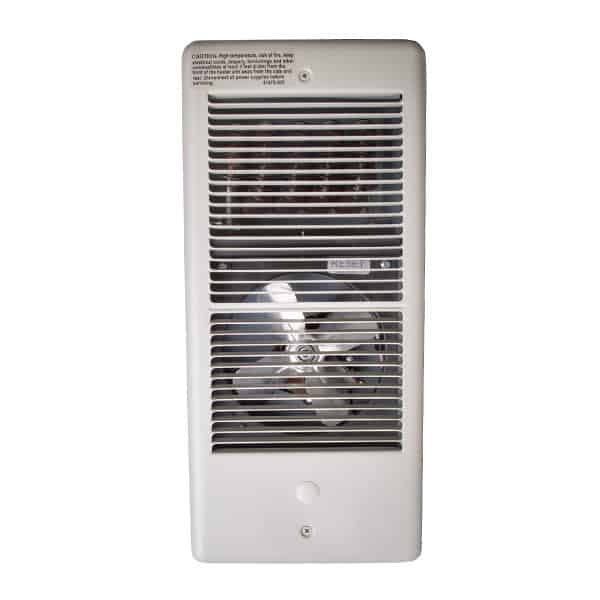

Electric Recessed Wall Heater

From: £210.00 ex VAT

Fan forced wall insert heaters are compact fan heaters for those hard to heat places such as entrance lobbies, security gatehouses, checkout counters etc. Also available at 110V for site and mobile use.

View full product description
Clear

Enquire about wholesale orders for Electric Recessed Wall Heater

Send enquiry or call on 01450 372103

Product Description

Versatile & compact 1kW, 1.5kW & 2kW fan forced wall insert heaters. Ideal for those hard to heat places such as entrances, receptions, small corridors, security cabins, cashier desks, service counters etc.

Designed for horizontal or vertical recess mounting. Where recess space is limited, an optional surface mounting box is available.

110v models available for works sites and mobile applications.

Physical Dimensions

CWD dimensions

Key Features

  • 1kW, 1.5kW & 2kW models for 230V supply
  • 1kW & 1.5kW models for 120V supply for site and mobile applications
  • Suitable for space saving recess mounting or surface mounting with addition of mounting box
  • Three position mounting, giving three airflow options
  • Finned tubular steel element
  • Auto reset over temperature cut-out
  • Beige powder coated finish
  • Optional integral thermostat

Technical Specifications

Cat No.Heat Output
(kW)
VoltsLength
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
CWD-10001.02304251941245.0
CWD-10011.01104251941245.0
CWD-15001.52304251941245.0
CWD-15011.51104251941245.0
CWD-20002.02304251941245.0
CWD-SSurface Mounting Box4251941241
CWD-TBIntegral thermostat

Design & Installation

The fan heaters are for horizontal or vertical mounting with top discharge. Clearances to vertical surfaces or floor must be 150mm.

Each unit is supplied for recess mounting. Surface mounting requires the optional surface box (CWD-S).

The fan heater should be securely fixed. All electrical connections made by a suitably qualified person in accordance with the latest edition of the IEE Requirements for Electrical Installation (BS7671:2008).
